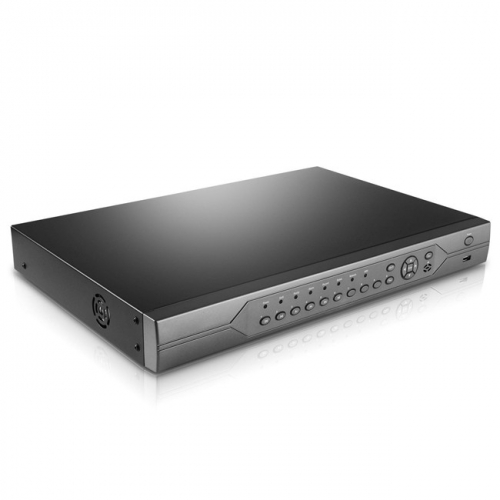

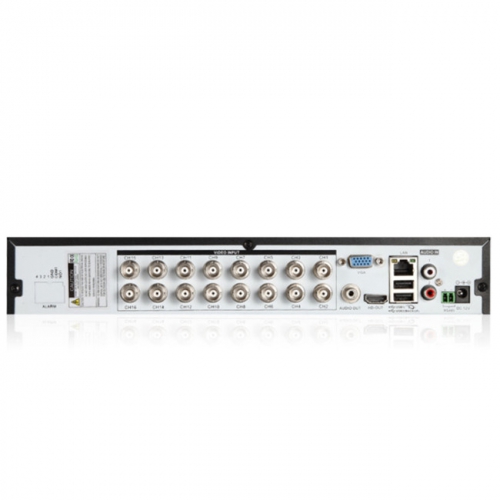

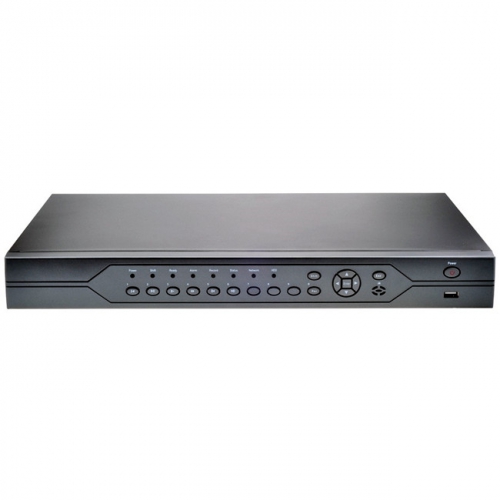

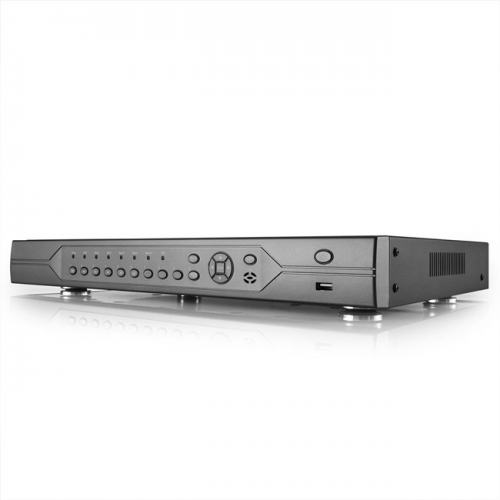

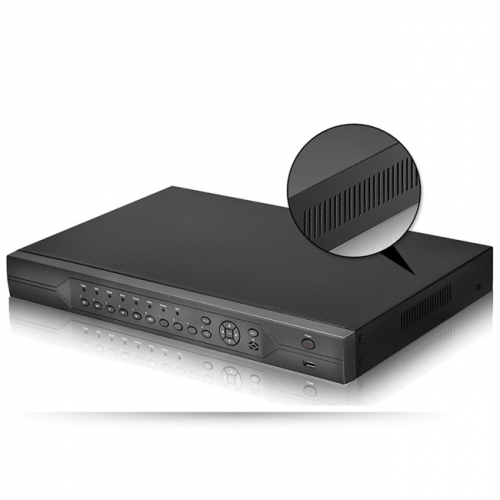

| Product Name | 5 in 1 TVI/ CVI/ AHD/ IP/ CVBS Hybrid 1080P AHD DVR | |
| Model No. | ES-D7008P | ES-D7016P |
| Operation System | Embedded Linux | |
| Video Format | H.264+ (Quasi H.264), H.264 | |
| Mainchip | Hisilicon 3531A | Hisilicon 3531A |
| Channel | 8CH | 16CH |
| Video Encode | 8*1080P@12fps, 8*1080N | 16*1080P@12fps, 16*1080N |
| Video Decode | 8*1080P@12fps, 8*1080N | 16*1080P@12fps, 16*1080N |
| Video Input | Analog : 8*1080P; 8*1080N Network: 8*1080P+8*960P;16*960P;4*5MP Hybrid: 4*1080N(analog)+4*1080P(network) |
Analog : 16*1080P; 16*1080N Network: 8*1080P+8*960P;4*5MP, 8*3MP Hybrid: 8*1080P(analog)+8*1080P(network) |
| Display mode | Full screen/ 4CH/ 8CH/ 9CH | Full screen/ 4CH/8CH/ 9CH/16CH |
| Video Output | 1CH VGA/ HDMI. VGA: 1280×1024, 1440*900, 1280×720, 1024×768, 800*600 HDMI: 1920×1080, 1280×1024, 1440*900, 1280×720, 1024×768, 800*600 |
|
| Motion detection | 192 (16*12) area detection per channel, multiplex sensitivity setting | |
| Audio Input | 8CH RCA | 16CH RCA |
| Audio Compression | G.711A | |
| Audio Output | 1 CH RCA output | |
| Talkback | 2 way audio talk back | |
| Alarm | 16CH input, 8CH output | |
| Stream type | Video / audio hybrid stream | |
| Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom |
|
| Record Mode | Manual/ Schedule/ Motion Detection/ Sensor | |
| Search Mode | Date/ time event/ schedule | |
| Mobile Monitoring | iPhone/ Android smart phone | |
| Local Surveillance | CMS (Windows & Apple iOS) | |
| System Recourse | Multiplex recording /playback, multi-users operation | |
| Video Storage | Hard drive(HDD), network | |
| HDD Interface | 4* SATA port, up to 8TB per HDD | 4* SATA port, up to 8TB per HDD |
| Backup Mode | Network back, USB portable HDD, USB recording, SATA burner | |
| Network Connection | 1*WAN, 10M/100M adaptable Ethernet RJ45 port | |
| Network Protocol | TCP/IP, DHCP, DDNS, DNS, PPPoE, UPnP, NTP, SMTP, etc. | |
| PTZ Function | RS485 port, support multiple PTZ protocol | |
| Menu Control | USB mouse, button, remote controller | |
| OSD Menu | Support multiple languages | |
| Power Supply | DC 12V, 6A | DC 12V, 6A |
| Power Consumption | ≤15W (Without HDD) | |
| Color | Black | |
| Material | Metal | |
| Accessories | Adapter, mouse, manual, CD-disk, installation package | |
| Work Environment | Temperature: -10--+55°, Humidity: 10%--90% | |
| Products Dimensions | 440mm(L)*400mm(W)*60mm(H) | 440mm(L)*400mm(W)*60mm(H) |
