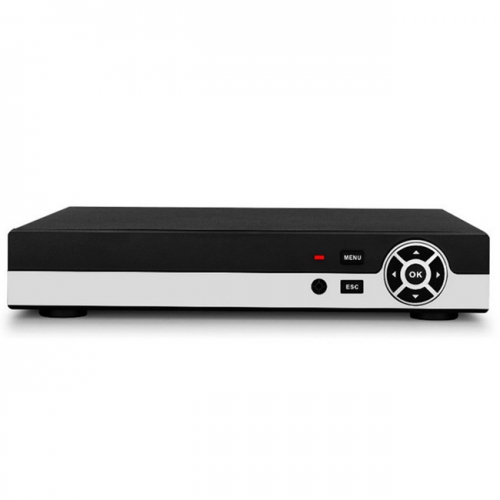

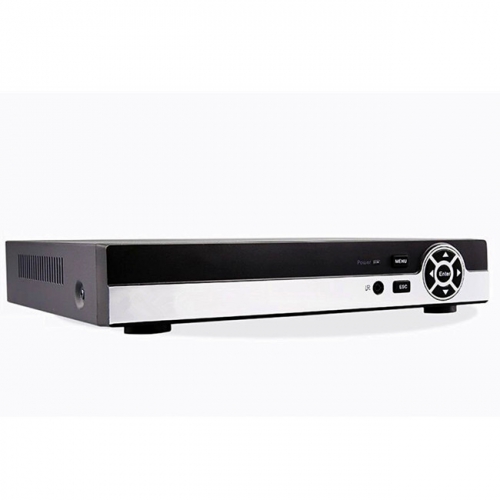

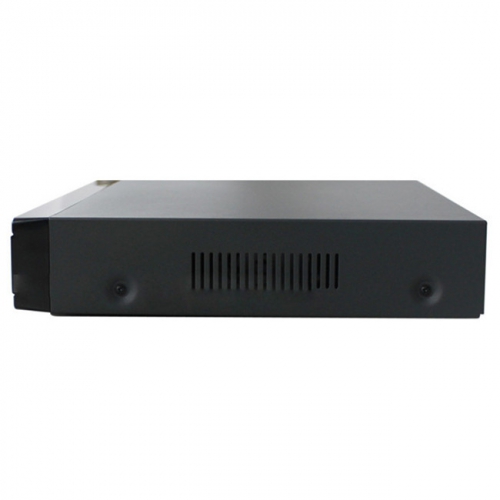

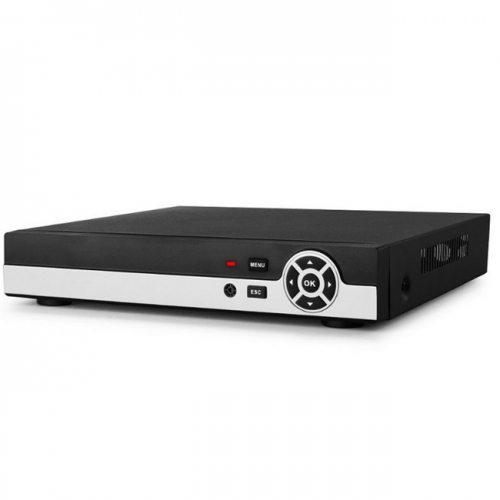

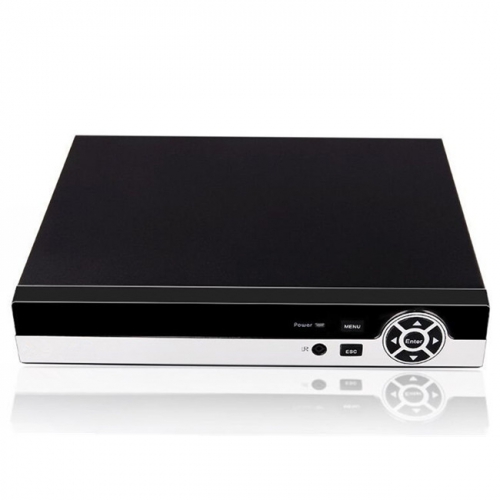

3MP/ 4MP AHD DVR

Model:ES-D6204U
* 5 in 1 hybrid 3MP/ 4MP AHD DVR
* Embedded linux operation system
* Standard H.264+ video compression format
* TVI/ CVI/ AHD/ IP/ CVBS video mode input
* Support HDMI/ VGA video output
* Support standard PTZ input, RS-485 port
* Motion detection, privacy masking, email alert
* P2P function, browser/ smart phone live viewing
* Support USB mouse/reomte control/ button operation
* Power: DC 12V
  • 1. Full HD 5 in 1 hybrid 3MP/ 4MP AHD DVR
    2. Embedded Linux operation system
    3. Standard H.264+ video compression format
    4. PAL/ NTSC video system adjustable
    5. Support TVI/ CVI/ AHD/ IP/ CVBS five video modes input
    6. Support HDMI/ VGA video output
    7. Support standard PTZ input, RS-485 port
    8. Motion detection, privacy masking, email alert
    9.
    Support Onvif protocol, support third party IP camera access
    10. P2P funcotion, support internet browser remote live view
    11. Iphone/ Android mobilephone multichannels viewing
    12. Support CMS, VMS, support SDK development
    13. Support UTC, control signal& video stream transmit by coaxial cable
    14. USB flash driver/ HDD/ could for backup
    15. Support USB mouse/ panel/ reomte controll operation
    16. Support 8TB HDD per SATA
    17. Power: DC 12V
  •  Product Name  5 in 1 TVI/ CVI/ AHD/ IP/ CVBS Hybrid 3.0MP/ 4.0MP AHD DVR
     Model No.  ES-D6204U  ES-D6208U  ES-D6216U
     Operation System  Embedded Linux
     Video Format  H.264+ (Quasi H.264), H.264
     Mainchip  Hisilicon 3520D-V300  Hisilicon 3521A  Hisilicon 3531A
     Channel  4CH  8CH  16CH
     Video Encode  4*4MP@8fps(AHD)/ 4*3MP@10fps(AHD)
     4*1080P@15fps(5 in 1)/4*720P(5 in 1)
     8*4MP@8fps(AHD)/8*3MP@10fps(AHD)
     8*1080P@15fps(5 in 1)/ 8*720P(5 in 1)
     16*4M@8fps(AHD)/16*3M@10fps(AHD)
     16*1080P @15fps (5 in 1) / 16*720P
     Video Decode  4*4MP@8fps(AHD)/ 4*3MP@10fps(AHD)
     4*1080P@15fps(5 in 1)/4*720P(5 in 1)
     8*4MP@8fps(AHD)/8*3MP@10fps(AHD)
     8*1080P@15fps(5 in 1)/ 8*720P(5 in 1)
     8*4MP@8fps(AHD)/8*3MP@10fps(AHD)
     8*1080P@15fps(5 in 1)/8*720P(5 in 1)

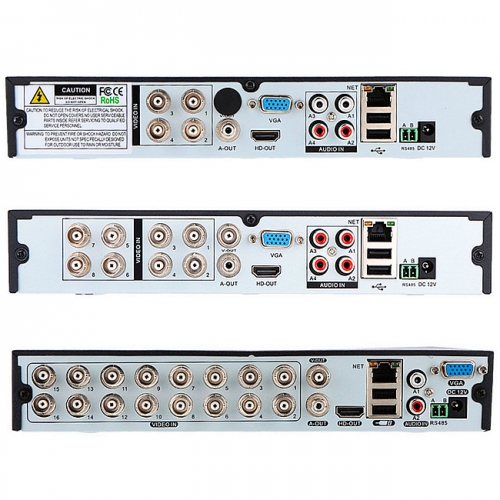

     Video Input  Analog : 4*4MP/ 3MP/ 1080P/ 1080N/ 720P
     Network: 16*1080P/960P;9*1080P;4*5MP
     Hybrid: 2*4MP(analog)+2*4MP(network)
     Analog : 8*4MP/ 3MP/ 1080P/ 1080N/ 720P
     Network: 8*1080P+8*960P;4*5MP/ 3MP
     Hybrid: 4*4MP(analog)+4*4MP(network)
     Analog : 16*4MP/ 3MP/ 1080P/ 1080N/ 720P
     Network: 16*1080P;4*5MP; 8*3MP
     Hybrid: 8*4MP(analog)+8*4MP(network)
     Display mode  Full screen/ 4CH  Full screen/ 4CH/8CH/  9CH  Full screen/ 4CH/ 8CH/ 9CH/ 16CH
     Video Output  1CH VGA/ HDMI.  VGA: 1280×1024, 1440*900, 1280×720, 1024×768, 800*600
     HDMI: 1920×1080, 1280×1024, 1440*900, 1280×720, 1024×768, 800*600
     Motion detection  192 (16*12)  area detection per channel, multiplex sensitivity setting
     Audio Input  4CH RCA  4CH RCA  2CH RCA
     Audio Compression  G.711A
     Audio Output  1 CH RCA output
     Talkback  2 way audio talk back
     Stream type  Video / audio hybrid stream
     Playback Function  Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat,
     shuffle, backup selection, digital zoom
     Record Mode  Manual/ Schedule/ Motion Detection/ Sensor
     Search Mode  Date/ time event/ schedule
     Mobile Monitoring  iPhone/ Android smart phone
     Local Surveillance  CMS (Windows & Apple iOS)
     System Recourse  Multiplex recording /playback, multi-users operation
     Video Storage  Hard drive(HDD), network
     HDD Interface  1* SATA port, up to 8TB HDD  1* SATA port, up to 8TB HDD  2* SATA port, up to 16TB HDD
     Backup Mode  Network back, USB portable HDD, USB recording, SATA burner
     Network Connection  1*WAN, 10M/100M adaptable Ethernet RJ45 port
     Network Protocol  TCP/IP, DHCP, DDNS, DNS, PPPoE, UPnP, NTP, SMTP, etc.
     PTZ Function  RS485 port, support multiple PTZ protocol
     Menu Control  USB mouse, button, remote controller
     OSD Menu  Support multiple languages
     Power Supply  DC 12V, 2A DC 12V, 2A DC 12V, 4A
     Power Consumption  ≤15W (Without HDD)
     Color  Black
     Material  Metal
     Accessories  Adapter, mouse, manual, CD-disk, installation package
     Work Environment  Temperature: -10--+55°, Humidity: 10%--90%
     Products Dimensions  255mm(L)*215mm(W)*42mm(H)  255mm(L)*215mm(W)*42mm(H)  325mm(L)*243mm(W)*52mm(H)
