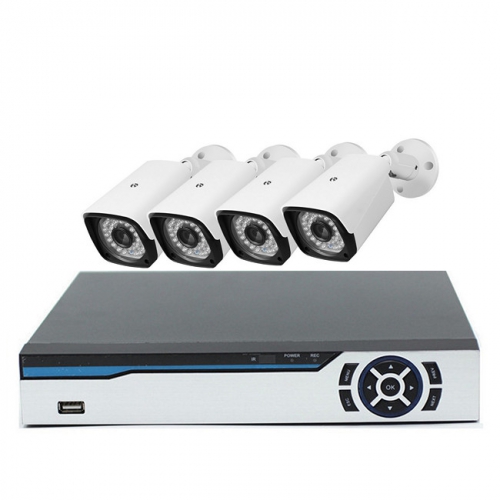

1080P AHD Camera Kit

Model:ES-DK6604F
* CCTV system 1080P AHD DVR camera kit
* Standard H.264 video compression
* 5 in 1 hybrid 4CH AHD 1080N DVR,support HDMI/ VGA
* 4 bullet 1080P AHD camera with 30M night vision
* Realtime recording & synchro playback
* Motion detection, privacy masking, email alert
* Iphone/ Android mobilephone multichannels viewing
* Support CMS, APP, broswer live viewing
* All in one, easily installation and simply operation
* Power: DC12V
  • 1. CCTV security system 4CH 1080P AHD DVR camera kit
    2. Embedded linux operation system
    3. Standard H.264 video compression
    4. Professional industrial processor
    5. DVR is available for TVI/CVI/AHD/IP/CVBS mode input
    6. Support RS-485, HDMI/ VGA video output
    7. Realtime recording & synchro playback
    8. 4*2MP bullet camera, outdoor/indoor use
    9. With 36 IR LEDs for night vision 30 meters
    10. Motion detection, privacy masking, email alert
    11. Support CMS, APP, broswer live viewing
    12. Iphone/ Android multichannels monitoring
    13. All in one kit, easy to install, simple to use
    14. 1*SATA, up to 8TB HDD
    15. Input power: DC12V
  •  Specification for Security AHD Camera
     Model No.  ES-D6604N

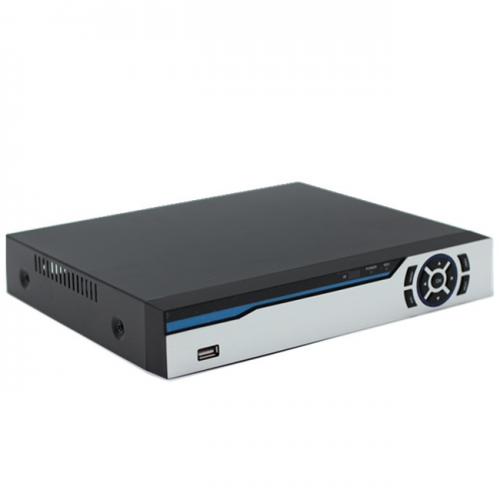

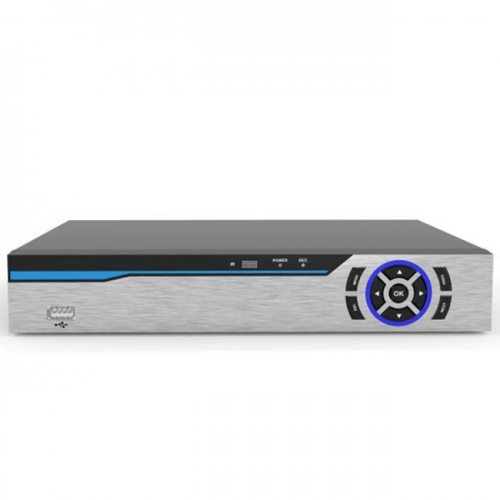

     Product Name  1080N 5 in 1 TVI/ CVI/ AHD/ IP/ CVBS Hybrid AHD DVR
     APP   XMEYE
     Color  Black
     Material  Metal
     Operation System  Embedded Linux
     Video Format  H.264
     Channels  4CH
     Main Processor  Hisilicon 3520D-V200
     Video Input  Analog : 4*1080N/720P/960H
     Network: 8*1080P/ 720P; 12*960P
     Hybrid: 2*1080N(analog)+2*960P(network)
     Video Output  1*HDMI / 1*VGA
     Audio Input  4CH RCA
     Audio Output  G.711A, 1 CH RCA output
     Talkback  2 way audio talk back
     Recording Mode  Manual, alarm, motion detection, timing
     Playback  1CH / 4CH, time, date, event, channel, exact search
     Mobile Surveillance  Support Iphone/ Android mobile phone live viewing
     Alarm  Motion detection, APP push notifications and email alert
     Network Connection  1*WAN, 10M/100M adaptable Ethernet RJ45 port
     Network Protocol  TCP/IP, DHCP, DDNS, DNS, PPPoE, UPnP, NTP, SMTP, etc.
     PTZ Function  RS485 port, support multiple PTZ protocol
     Storage Capacity  1*SATA port, internal hard drive, up to 8TB
     Operation  Compatible with Mobile App, CMS, browser
     Power Supply  DC 12V, 2A
     OSD Language  Multilingual versions optional
     Installation  Desktop
     Specification for  Security AHD DVR
     Model No.  ES-AD3040F

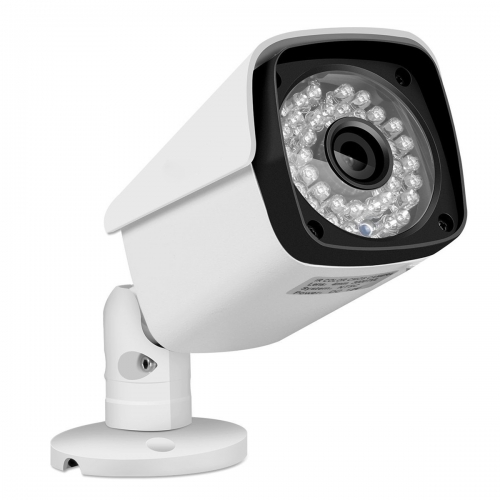

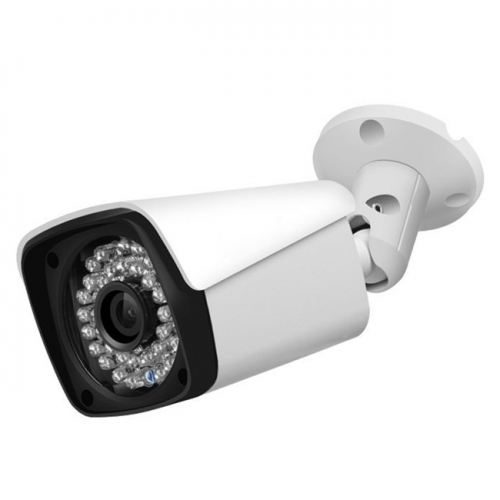

     Type  2.0MP/ 1080P AHD camera
     Image Sensor  1/3’’ color CMOS
     Video Quality  1080P, 2.0MP
     Signal Format  PAL / NTSC optional
     Effective Pixels  1920(H)*1080(V)P
     Lens  Built-in 3.6mm fixed lens,  approx. 75 degrees view angle
     Leds  High performance 36pcs IR Leds
     Min. illumination  0.1Lux/F1.5(Color), ,0.01lux/F1.5(B/W)
     Day/ Night Mode  Auto, Color in daytime, auto switch to B&W at nighttime
     Max. IR Distance  Night vision up to 30 meters (98ft)
     Body Material  Metal
     Color  White
     Use Range  Indoor/ outdoor
     Power Supply  DC 12V, 500m AP
     Power Consumption  ≤2W
     OSD Menu  Support OSD menu cable
     Transmission Distance  Up to 500M transmission distanceby coaxial cable (by 75-3/ 75-5 cable)
     Working Environment  -10°C~+55°C, 10%~90% RH
     Weatherproof  IP66 for outdoor bullet
     Installed Type  Ceiling / wall mounted
  • Name:Type:Size:

  • *

    *

    *

    *
