Model | Model No. | ES-AD3007AH |

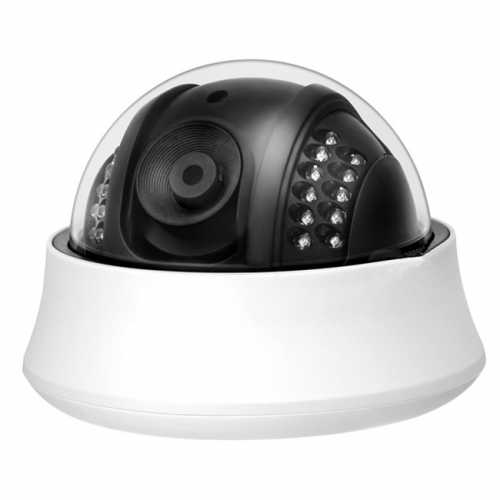

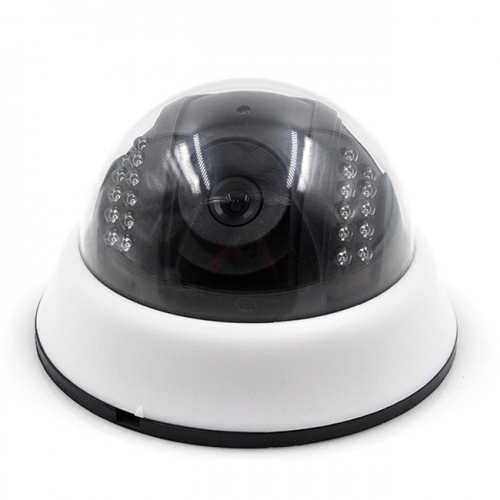

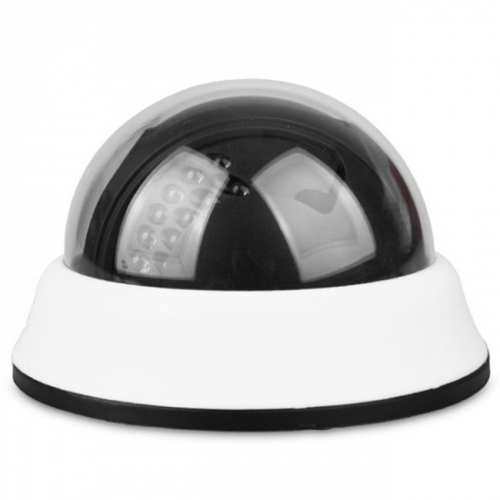

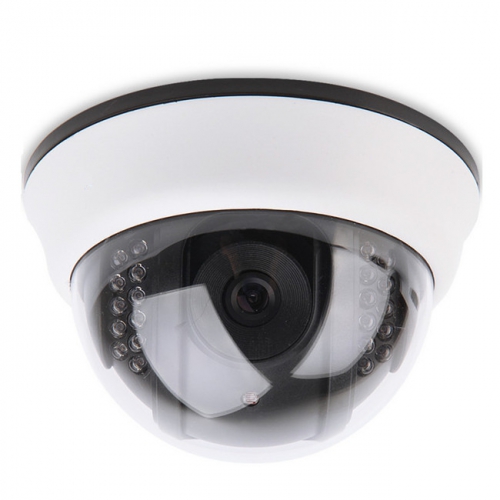

Type | 1.3MP/ 960P AHD 4 in 1 Dome camera | |
Video | Image Sensor | 1/3’’ color CMOS |
Video Quality | 960P, 1.3MP | |
Signal Format | PAL / NTSC optional | |
Effective Pixels | 1280(H)*960(V)P | |
Frame Rate | PAL@25fps, NTSC@30fps | |
Video Output Impedance | 1.0Vp-p composite 75ohm | |
S/N Ratio | ≥55dB (AGC off) | |

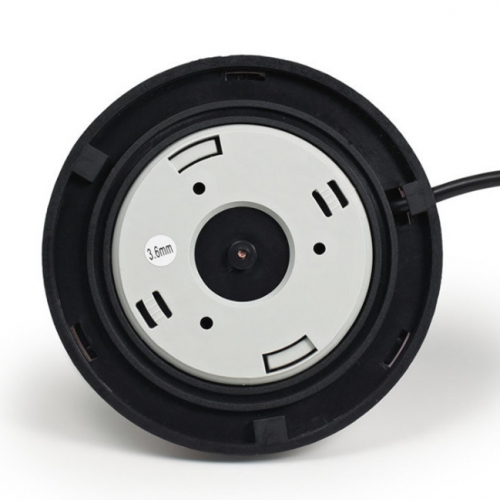

Lens | Built-in 3.6mm fixed lens | |
View Angle | Approx. 75 degrees | |
Leds | High performance 22pcs IR Leds | |
Min. illumination | 0.1Lux/F1.5(Color), ,0.01lux/F1.5(B/W) | |
Day/ Night Mode | Auto, Color in daytime, auto switch to B&W at nighttime | |
Max. IR Distance | Night vision up to 20 meters (65ft) | |
Operation | Electronic Shutter Speed | PAL: 1/50~1/10,000S; NTSC: 1/60~1/10,000S |
White Balance | Automatic (2500°K~9500°K) | |
AGC | Auto, low / middle / high / off | |
Gain Control | Auto, built-in | |
Backlight Compensation | Auto, BLC / DWDR | |
HBL | Support | |
Noise Reduction | 2D/ 3D NR | |
General | Body Material | ABS(plastic) |
Color | White | |
Use Range | Indoor | |
Power Supply | DC 12V, 500m AP | |
Power Consumption | ≤2W | |
OSD Menu | Support OSD menu cable | |
Transmission Distance | Up to 500M transmission distanceby coaxial cable (by 75-3/ 75-5 cable) | |
Working Environment | -10°C~+55°C, 10%~90% RH | |
Weatherproof | No | |
Installed Type | Ceiling / wall mounted | |

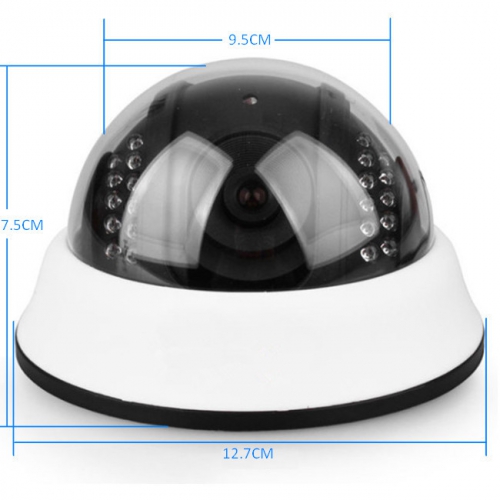

Dimension | 127(L)* 78(H) mm | |
Weight | 165g |
