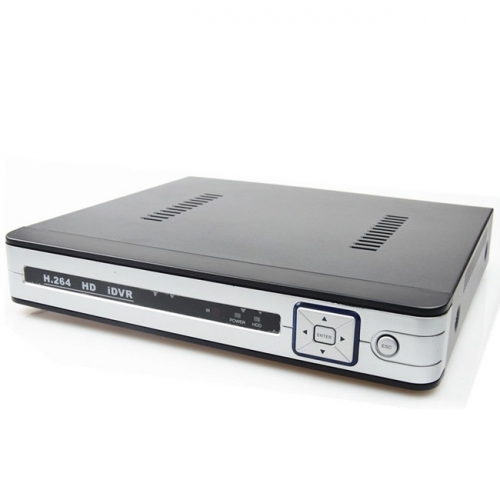

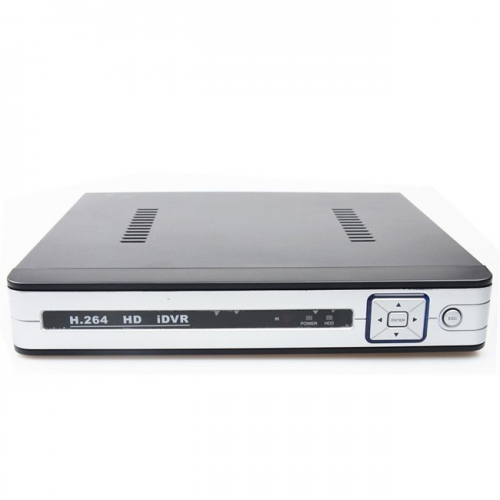

| Specification for Security AHD Camera |
| Model No. |
ES-D6308N |
| Product Name |
1080N 5 in 1 TVI/ CVI/ AHD/ IP/ CVBS Hybrid AHD DVR |
| APP |
XMEYE |
| Color |
Black |
| Material |
Metal |
| Operation System |
Embedded Linux |
| Video Format |
H.264 |
| Channels |
8CH |
| Main Processor |
Hisilicon 3520D-V300 |

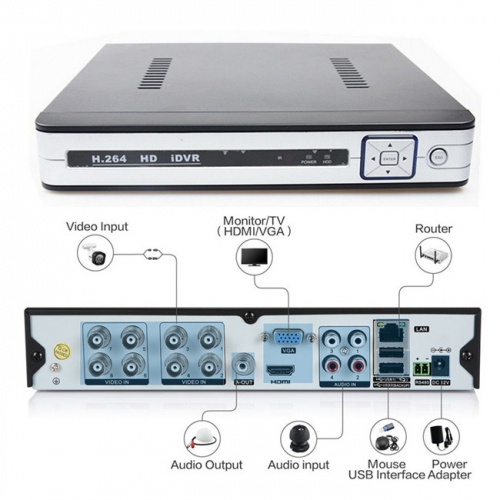

| Video Input |
Analog: 8*1080N@12fps; 4*1080P |
| Network: 16*1080P/960P; 4*5MP |
| Hybrid: 4*1080N(analog)+4*960P(network) |
| Video Output |
1*HDMI / 1*VGA |
| Audio Input |
4CH RCA |
| Audio Output |
G.711A, 1 CH RCA output |
| Talkback |
2 way audio talk back |
| Recording Mode |
Manual, alarm, motion detection, timing |
| Playback |
1CH / 4CH, time, date, event, channel, exact search |
| Mobile Surveillance |
Support Iphone/ Android mobile phone live viewing |
| Alarm |
Motion detection, APP push notifications and email alert |
| Network Connection |
1*WAN, 10M/100M adaptable Ethernet RJ45 port |
| Network Protocol |
TCP/IP, DHCP, DDNS, DNS, PPPoE, UPnP, NTP, SMTP, etc. |
| PTZ Function |
RS485 port, support multiple PTZ protocol |
| Storage Capacity |
1*SATA port, internal hard drive, up to 8TB |
| Operation |
Compatible with Mobile App, CMS, browser |
| Power Supply |
DC 12V, 2A |
| OSD Language |
Multilingual versions optional |
| Installation |
Desktop |

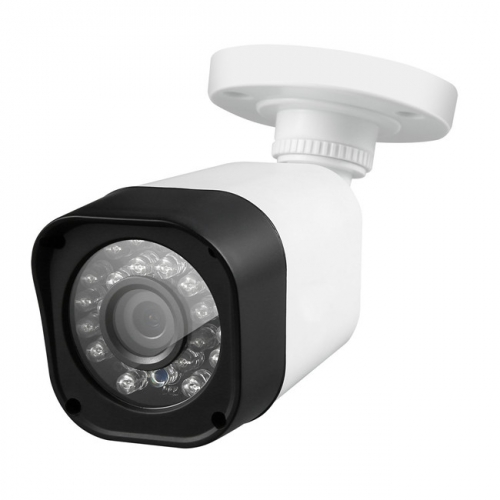

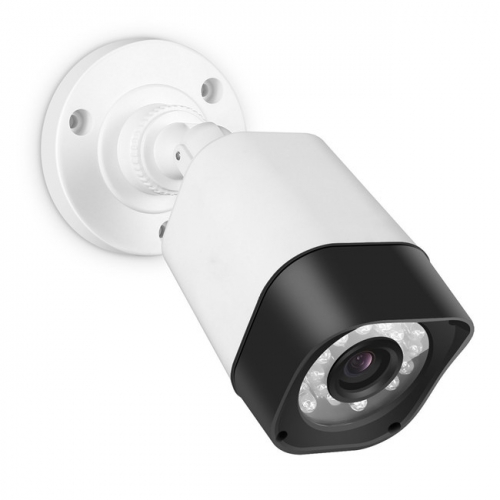

| Specification for Security AHD DVR |
| Model No. |
ES-AB3021B |
| Type |
1.0MP/ 720P AHD bullet camera |
| Image Sensor |
1/4’’ color CMOS |
| Video Quality |
720P, 1.0MP |
| Signal Format |
PAL / NTSC optional |
| Effective Pixels |
1280(H)*720(V)P |
| Lens |
Built-in 3.6mm fixed lens, approx. 75 degrees view angle |
| Leds |
High performance 24pcs IR Leds |
| Min. illumination |
0.1Lux/F1.5(Color), ,0.01lux/F1.5(B/W) |
| Day/ Night Mode |
Auto, Color in daytime, auto switch to B&W at nighttime |
| Max. IR Distance |
Night vision up to 20 meters (65ft) |
| Body Material |
Plastic |
| Color |
White |
| Use Range |
Indoor/ outdoor |
| Power Supply |
DC 12V, 500m AP |
| Power Consumption |
≤2W |
| OSD Menu |
Support OSD menu cable |
| Transmission Distance |
Up to 500M transmission distanceby coaxial cable (by 75-3/ 75-5 cable) |
| Working Environment |
-10°C~+55°C, 10%~90% RH |
| Weatherproof |
IP66 |
| Installed Type |
Ceiling / wall mounted |
