| Model No. | ES-AP8025A | ||||||

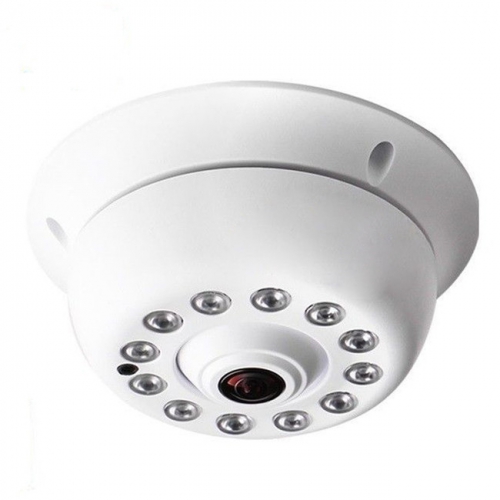

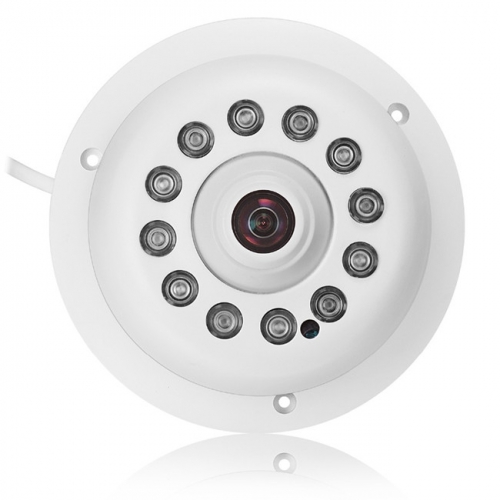

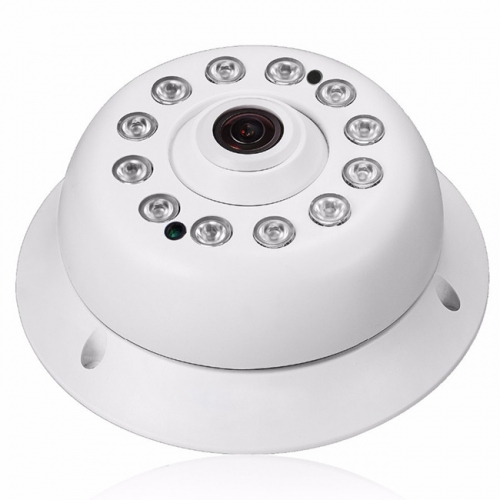

| Product Name | Fisheye Panoramic AHD camera | ||||||
| Color | White | ||||||
| Material | Plastic (ABS) | ||||||
| Operation System | Embedded Linux | ||||||
| Video Format | H.264+ | ||||||
| Sensor | 1/3‘‘ image CMOS | ||||||
| Video Quality | 960P, 1.3MP | ||||||
| Resolution | 1280*960P | ||||||
| Video Output | 1.0Vp-p composite 75ohm | ||||||
| Camera Lens | 1.44mm fixed lens, 360° full angle view monitoring | ||||||
| LED | 12pcs high performance IR Led | ||||||
| IR Distance | Up to 15m (49ft) | ||||||
| Night Vision | Auto, color in daytime, auto switch to B&W at nighttime | ||||||
| AGC | Auto, low/ middle/ high/ off | ||||||
| Gain Control | Auto, built-in | ||||||
| White Balance | Auto(2500°K~9500°K) | ||||||
| Back Light compensation | Auto, BLC / DWDR | ||||||
| OSD Cable | Supprt | ||||||
| Power Supply | DC 12V | ||||||
| Use Range | Indoor only | ||||||

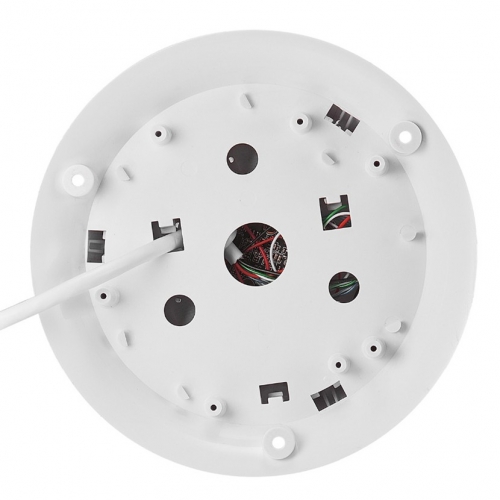

| Installation | Ceiling installation | ||||||
