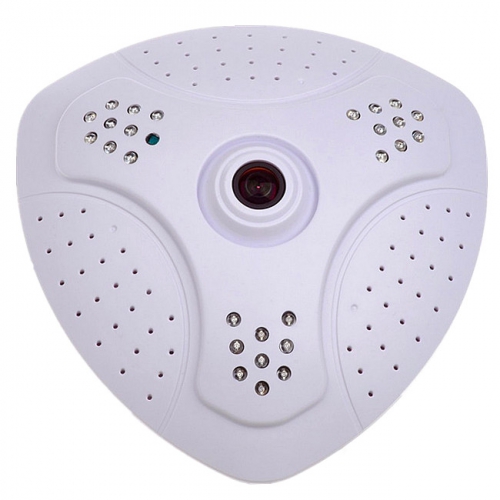

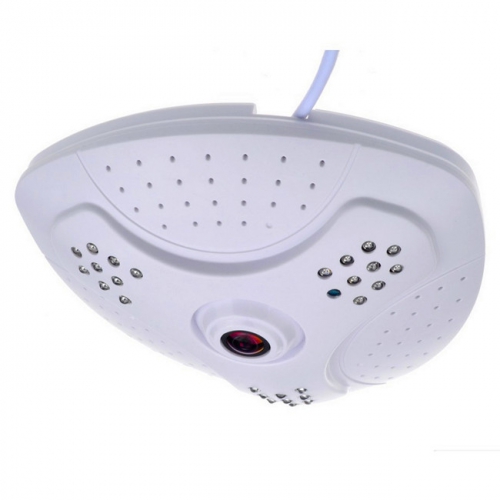

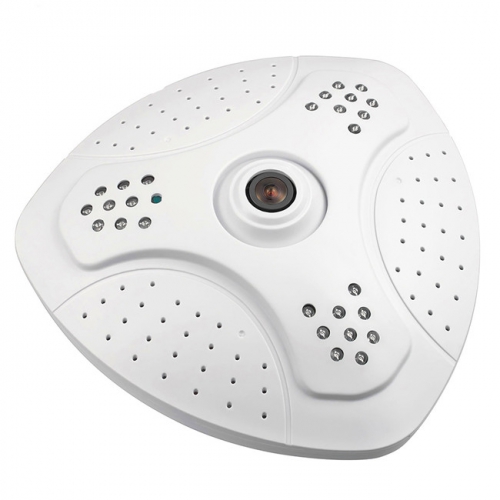

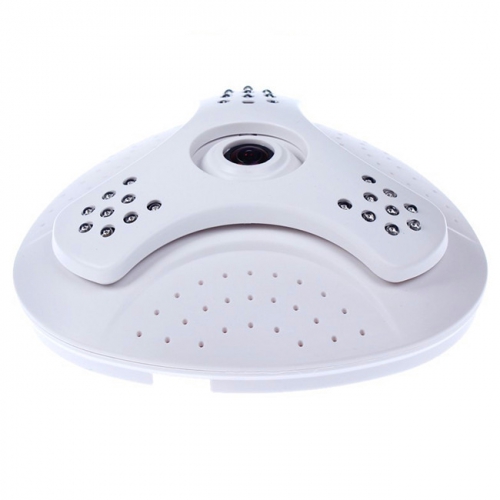

Fisheye 360 AHD camera

Model:ES-WP8021F
* Fisheye 360 degree panoramic AHD camera
* Standard H.264 video compression
* 1.44mm fish-eye panoramic lens
* 360°full angle view monitoring
* Smart IR filter, day & night auto switch
* 27pcs high IR leds,night vision 20 meters(65ft)
* Low illumination, Min. 0.1Lux(0.01Lux IR led on)
* OSD menu cable optional
* Max. 500M transmission distance by coax cable
* Dual voltage input(DC 12v±25%/AC 24V±25%)
  • 1. Fisheye 360 degree panoramic 108P AHD camera
    2. Color: white
    3. Material: ABS(plastic)
    4. Standard H.264 video compression
    5. Image color 1/3‘‘ CMOS sensor
    6. Real time HD 2.0MP/1920*1080P resolution
    7. 1.44mm fish-eye panoramic lens
    8. 360°full angle view monitoring
    9. Smart IR filter, day & night auto switch
    10. 27pcs high performance IR leds
    11. Night vision up to 20 meters(65ft)
    12. Low illumination, Min. 0.1Lux(0.01Lux IR led on)
    13. True WDR,2D&3D noise reduce
    14. OSD menu cable optional
    15. Max. 500M transmission distance by coax cable
    16. Dual voltage input(DC 12v±25%/AC 24V±25%)
    17. Indoor use only, ceiling installation
  •  Model No.  ES-AP8021F
     Product Name  Fisheye Panoramic AHD camera
     Color  White
     Material  Plastic (ABS)
     Operation System  Embedded Linux
     Video Format  H.264+
     Sensor  1/3‘‘ image CMOS
     Video Quality  1080P, 2.0MP
     Resolution  1920*1080P
     Video Output  1.0Vp-p composite 75ohm
     Camera Lens  1.44mm fixed lens,  360° full angle view monitoring
     LED  27pcs high performance IR Led
     IR Distance  Up to 20m (65ft)
     Night Vision  Auto, color in daytime, auto switch to B&W at nighttime
     AGC  Auto, low/ middle/ high/ off
     Gain Control  Auto, built-in
     White Balance  Auto(2500°K~9500°K)
     Back Light compensation  Auto, BLC / DWDR
     OSD Cable  Supprt
     Power  Supply  DC 12V
     Use Range  Indoor only

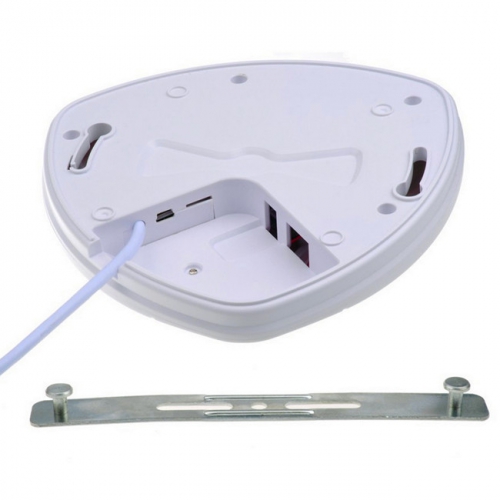

     Installation  Ceiling installation
  • Name:Type:Size:

  • *

    *

    *

    *
