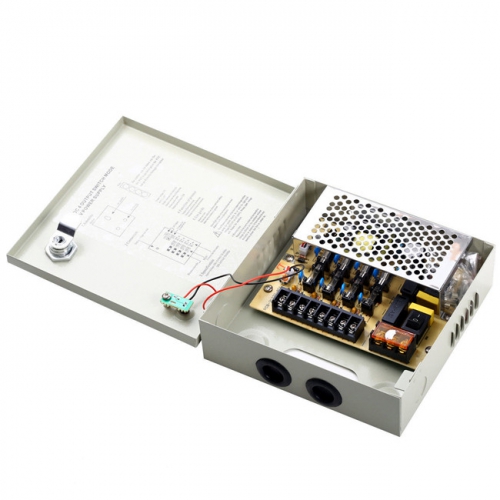

4CH CCTV Power Supply Box

Model:ES-PB04
* CCTV power supply box
* 4CH power supply box distribution
* Auto-reset PTC fuse protected output
* Default 1A fuse
* Power on/off switch
* Key protection
* Over-current, short circuit, overload protection

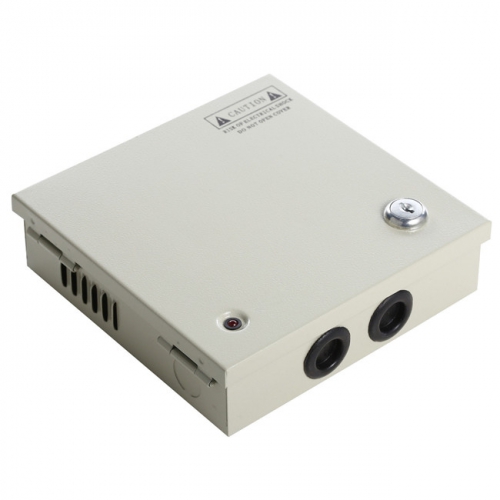

* Metal covered case with lock
* Individual LED statue indicator
* For indoor use only
  • 1. CCTV power supply box
    2. 4CH power supply box distribution
    3. Auto-reset PTC fuse protected output
    4. Default 1A fuse
    5. Power on/off switch
    6. Key protection
    7. Over-current, short circuit, overload protection
    8. Input: 100-120VAC / 50-60Hz
    9. Output Voltage : DC12V
    10. ADJ: 11-13V
    11. Output current: I(01-04)=5A, (Max)=6A
    12. Output power: 60W, Max 72W
    13. Multiple outputs (4 channel)
    14. Dimensions: Approx. 164(L)*164(H)52(W) mm
    15. Weight: 750g
    16. Metal covered case with lock
    17. Individual LED statue indicator
    18. For indoor use only
  • 1. CCTV power supply box
    2. 4CH power supply box distribution
    3. Auto-reset PTC fuse protected output
    4. Default 1A fuse
    5. Power on/off switch
    6. Key protection
    7. Over-current, short circuit, overload protection
    8. Input: 100-120VAC / 50-60Hz
    9. Output Voltage : DC12V
    10. ADJ: 11-13V
    11. Output current: I(01-04)=5A, (Max)=6A
    12. Output power: 60W, Max 72W
    13. Multiple outputs (4 channel)
    14. Dimensions: Approx. 164(L)*164(H)52(W) mm
    15. Weight: 750g
    16. Metal covered case with lock
    17. Individual LED statue indicator
    18. For indoor use only
  • Name:Type:Size:

  • *

    *

    *

    *
