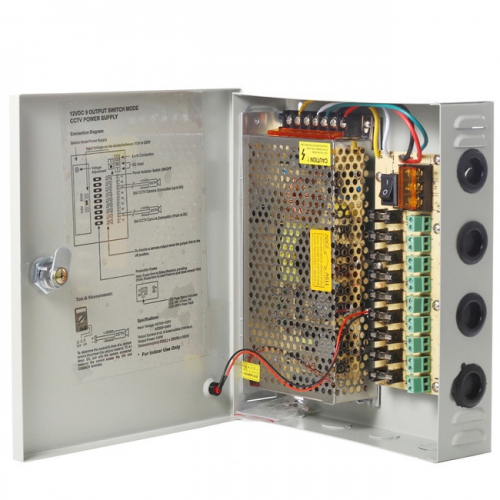

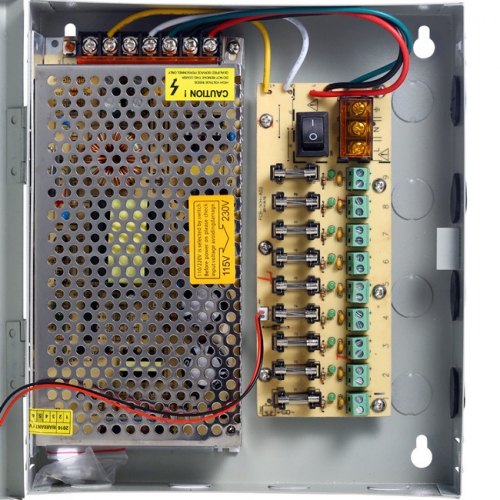

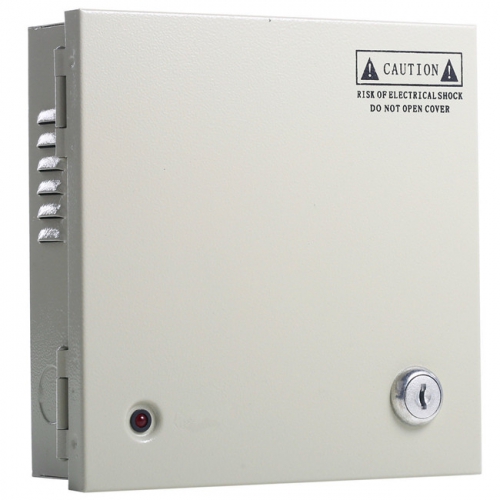

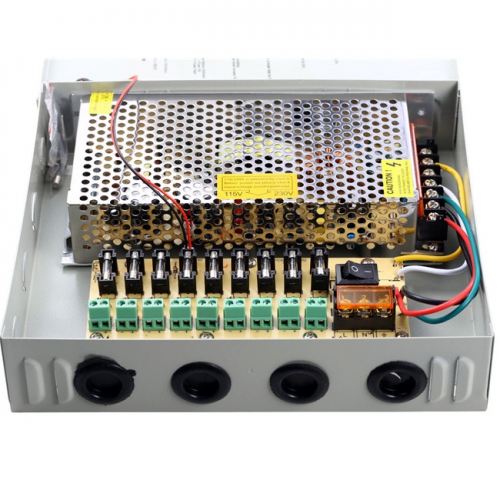

CCTV Power Supply Box

Model:ES-PB09
* CCTV power supply box
* 9CH power supply box distribution
* Auto-reset PTC fuse protected output
* Power on/off switch
* Key protection
* Over-current, short circuit, overload protection
* Metal covered case with lock
* Individual LED statue indicator
* For indoor use only
  • 1. CCTV power supply box
    2. 9CH port power supply box distribution
    3. Auto-reset PTC fuse protected output
    4. Power on/off switch
    5. Key protection
    6. Over-current, short circuit, overload protection
    7. Input Voltage: AC100-120V / AC220-240V (optional)
    8. Output: 12VDC, 15A terminal connection
    9. Output power: 145W
    10. Multiple outputs, support up to 9 Cameras
    11. Dimensions: Approx. 208(L)*305(H)*52(W)mm
    12. Weight: 1.6kg
    13. Metal covered case with lock
    14. Individual LED statue indicator
    15. For indoor use only
  • 1. CCTV power supply box
    2. 9CH port power supply box distribution
    3. Auto-reset PTC fuse protected output
    4. Power on/off switch
    5. Key protection
    6. Over-current, short circuit, overload protection
    7. Input Voltage: AC100-120V / AC220-240V (optional)
    8. Output: 12VDC, 15A terminal connection
    9. Output power: 145W
    10. Multiple outputs, support up to 9 Cameras
    11. Dimensions: Approx. 208(L)*305(H)*52(W)mm
    12. Weight: 1.6kg
    13. Metal covered case with lock
    14. Individual LED statue indicator
    15. For indoor use only
