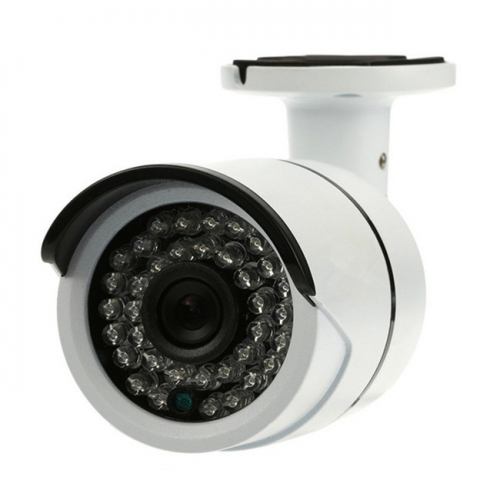

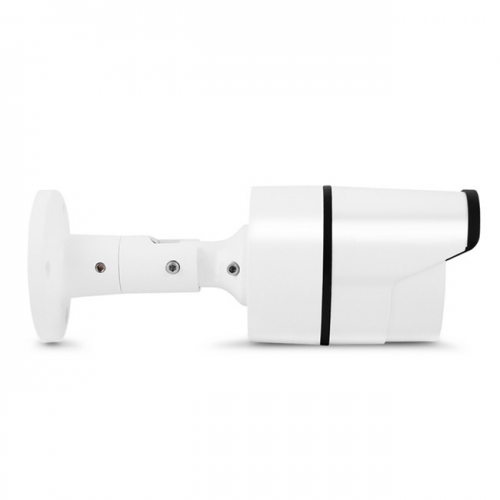

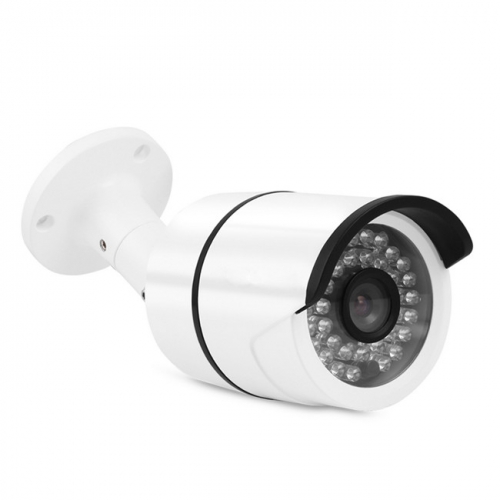

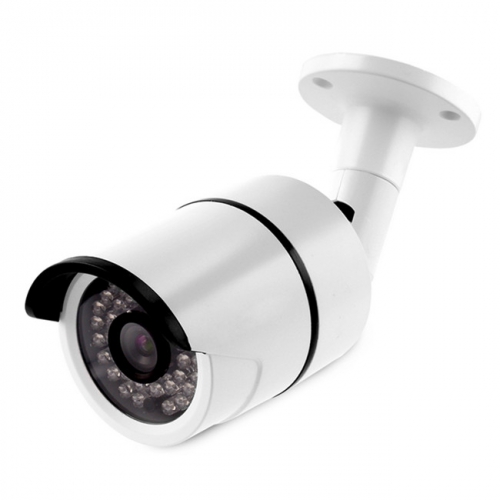

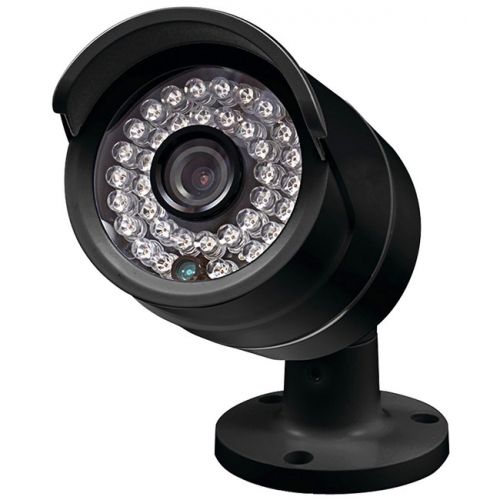

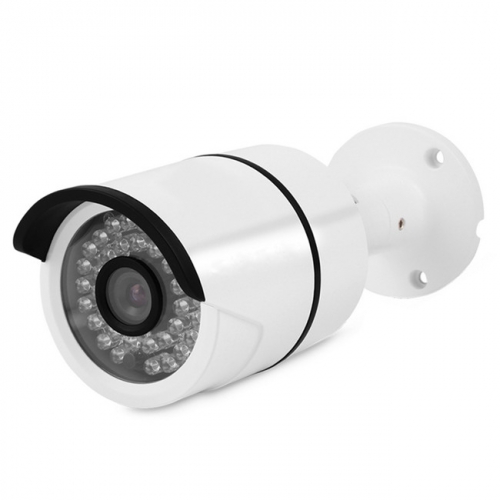

2.0MP AHD Starlight Camera

Model:ES-AB3038FS
* H.264 video compression AHD starlight camera
* Metal housing, white/ black color optional
* 3.6mm fixed lens (6mm/8mm optional)
* Smart IR-cut filter, day/ night auto switch
* 36pcs IR LED, night vision up to 30M
* Min. illumination 0.1Lux(0.01Lux IR Led on)
* OSD menu cable optional
* Max. 500M transmission distance by coax cable
* DC12V voltage output
* Waterproof, outodoor/ indoor use
  • 1. High definition 1080P/ 2.0MP AHD starlight/ starvis camera
    2. Material: Metal
    3. Color: white/ black
    4. Video compression: H.264 standard
    5. 1/3‘‘ Sony291 CMOS starvis sensor, 1920*1080P
    6. Lens: 3.6mm/ 6mm/ 8mm fixed lens available (default 3.6mm)
    7. High performance 3pcs array leds
    8. Smart IR filter, day & night auto switch
    9. Full colorful picture at day  and night time
    10. Night vision up to 20 meters (65ft)
    11. Low illumination, Min. 0.1Lux(0.01Lux IR led on)
    12. True WDR,2D&3D noise reduce
    13. OSD menu cable optional
    14. Dual voltage input(DC 12v±25%/AC 24V±25%)
    15. Voltage output: DC12V
    16. Max. 500M transmission distance by coaxial cablbe
    17. Waterproof, IP66 ingress protection
  • Model  Model No.  ES-AB3038FS
     Type  2.0MP/ 1080P AHD starlight bullet camera
    Video  Image Sensor  1/3‘‘ color CMOS
     Sensor Brand  SONY IMX291
     Video Quality  1080P, 2.0MP
     Signal Format  PAL / NTSC optional
     Effective Pixels  1920(H)*1080(V)P
     Frame Rate  PAL@25fps, NTSC@30fps
     Video Output Impedance  1.0Vp-p composite 75ohm
     S/N Ratio  ≥55dB (AGC off)
     Lens  Built-in 3.6mm fixed lens
     View Angle  Approx. 75 degrees
     Leds  High performance 36pcs IR Leds
     Min. illumination  0.1Lux/F1.5(Color), ,0.01lux/F1.5(B/W)
     Day/ Night Mode  Auto, Color in daytime, auto switch to B&W at nighttime
     Night Vision  Full colorful picture at night
     Max. IR Distance  Up to 30 meters (98ft)
    Operation  Electronic Shutter Speed  PAL: 1/50~1/10,000S; NTSC: 1/60~1/10,000S
     White Balance  Automatic (2500°K~9500°K)
     AGC  Auto, low / middle / high / off
     Gain Control  Auto, built-in
     Backlight Compensation  Auto, BLC / DWDR
     HBL  Support
     Noise Reduction  2D/ 3D NR
    General  Body Material  Metal
     Color  White/ black
     Use Range  Outdoor/ indoor
     Power Supply  DC 12V, 500m AP
     Power Consumption  ≤2W
     OSD Menu  Support OSD menu cable
     Transmission Distance  Up to 500M transmission distanceby coaxial cable (by 75-3/ 75-5 cable)
     Working Environment  -10°C~+55°C, 10%~90% RH
     Weatherproof  IP66
     Installed Type  Ceiling / wall mounted
     Dimension  190(L)* 63(W)* 63(H) mm
     Weight  308g
