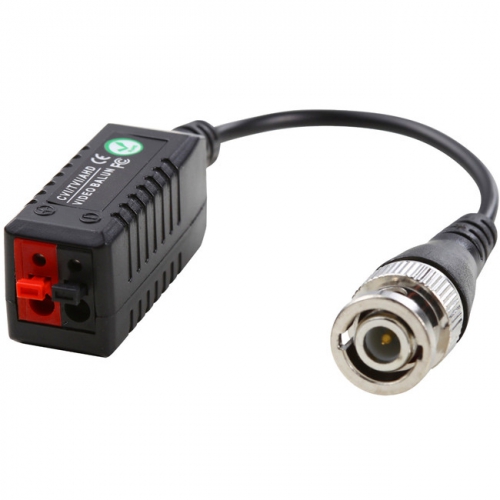

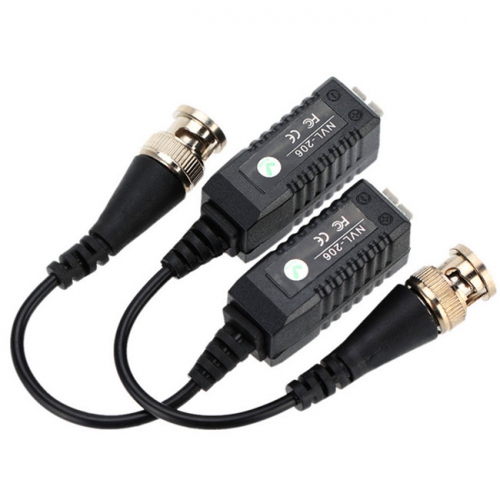

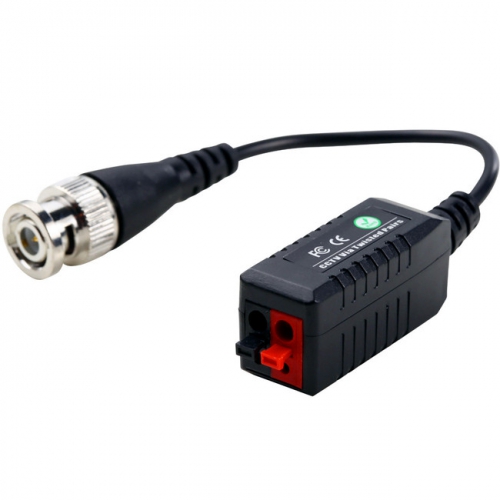

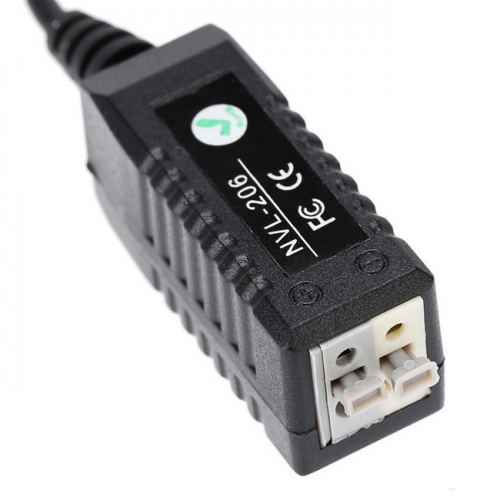

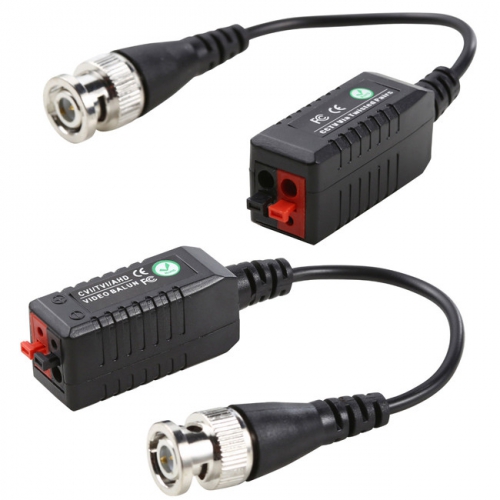

1. UTP transceiver video balun BNC connector
2. Real-time transmission
3. Compatible with PAL,NTSC,SECAM standard video signal
4. HDTVI, CVI, AHD camera are available
5. 0~300 meters transmission distance with passive transmitter
6. 0~1500 meters transmission distance with passive transmitter
7. Metric BNC coaxial interface, screw-type terminal blocks
8. Plug and play,easy installation
9. Signal transmission bandwidth:0 ~ 6MHz
10. Anti-interference: > 60dB
11. Protection level: 2000V
12. Frequency response: DC 8MHz
13. Common mode/differential mode rejection: 15KHz-5MHz
14. Impedance BNC head: 75Ω
15. Terminals unshielded twisted pair:24-16AWG Category 5 or above(CAT-5/5E/6 UPT)
16. Impedance: 100Ω±20%
17. DC loop resistance: 18Ω/100 meters
18. The differential capacitance: 62pf/m
19. Transient immunity: 6000V 1.2μS*50μS
20. Temperature:-20℃ ~+75 ℃
