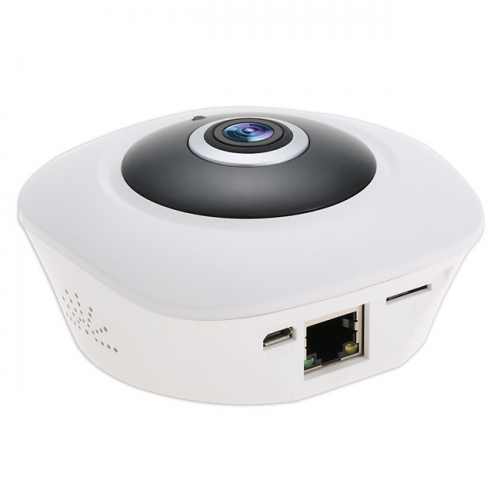

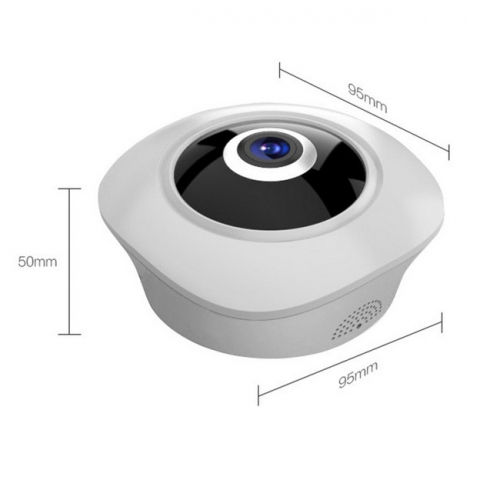

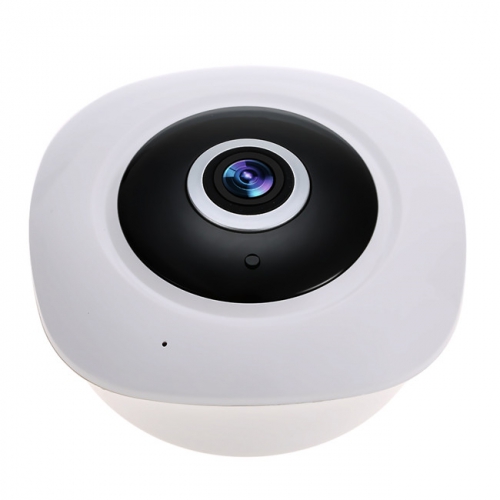

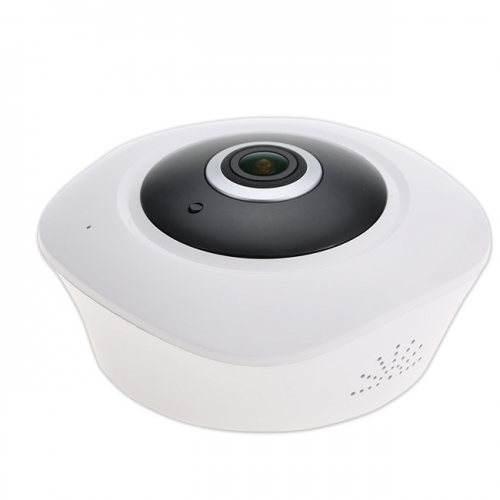

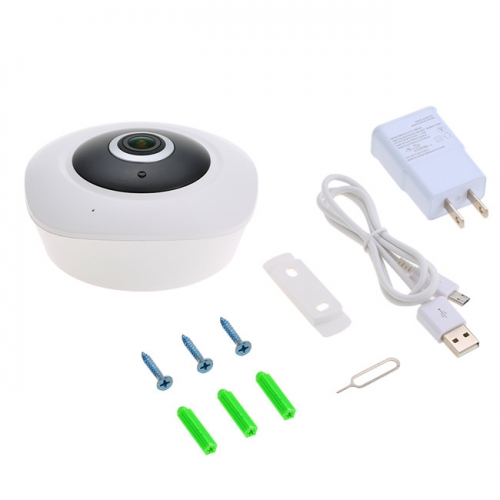

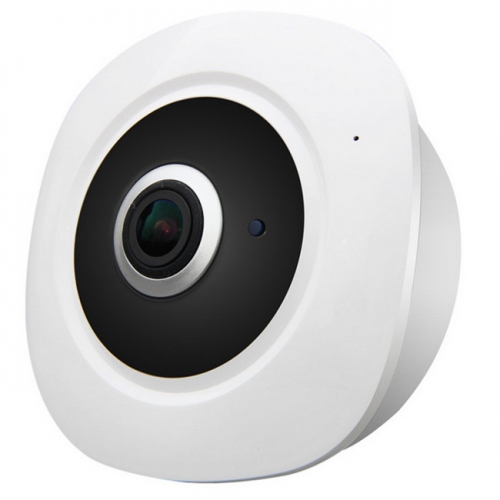

Wifi 360 Fisheye IP Camera

Model:ES-WP8003JF
* HD Wireless Wifi panoramic camera
* Standard H.264 video compression
* 360° full angle view monitoring
* Smart IR filter, day & night auto switch
* 3pcs high array leds,night vision 10 meters(33ft)
* Two-way talk, built-in specker and microphone
* Multiple preview mode, adapt to more scene
* Support micro SD card, up to 128GB
* WiFi encrypted or Ethernet wired connection
* Power: DC5V, 2A
  • 1. HD Wireless Wifi panoramic 1536P IP camera
    2. Color: white
    3. Standard H.264 video compression
    4. Image color 1/3‘‘ CMOS sensor
    5. Real time HD 2.4MP / 1536*1536P resolution
    6. 1.19mm fish-eye lens, 360° full angle view monitoring
    7. Smart IR filter, day & night auto switch
    8. 3pcs high performance IR leds
    9. Night vision up to 10 meters(33ft)
    10. Two-way talk, built-in specker and microphone
    11. Support E-PTZ, random angle adjustable
    12. Multiple preview mode, adapt to more scene
    13. Support micro SD card, up to 128GB
    14. Built-in Wifi module, support IEEE802.11b/n/g
    15. 1*RJ45 port, compatible wired connection
    16. Support iphone/ Android for remote monitoring
    17. Power: DC5V, 2A
    18. Indoor use only, ceiling installation
  •  Model No.  ES-WP8003JF
     Product Name  Wireless Wifi Panoramic IP Camera
     APP   VRCam
     Color  White
     Material  Plastic (ABS)
     Operation System  Embedded Linux
     Video Format  H.264+
     Sensor  1/3‘‘ image CMOS
     Video Quality  1536P, 2.4MP
     Resolution  1536*1536P
     Video Output  1.0Vp-p composite 75ohm
     Audio Format  G.711A / G.726
     Audio Intercom  Two-way talk, built-in speaker and microphone
     Camera Lens  1.19mm fixed lens,  360° full angle view monitoring
     Viewing Mode  E-PTZ mode, hemisphere mode, cyclinder mode, split screen mode, etc.
     LED  3pcs high performance IR Led
     IR Distance  Up to 10m (33ft)
     Night Vision  Auto, color in daytime, auto switch to B&W at nighttime
     AGC  Auto, low/ middle/ high/ off
     Gain Control  Auto, built-in
     White Balance  Auto(2500°K~9500°K)
     Back Light ompensation  Auto, BLC / DWDR
     Mobile Surveillance  Support Iphone/ Android mobile phone live viewing
     Alarm  APP push notifications and alerts by mobile phone
     Wire Connection  1*WAN, 10M/100M adaptable Ethernet RJ45 port
     Wifi Connection  IEEE 802.11b / g / n
     Storage Capacity  Supprt 8GB/ 16GB/ 32GB/ 64GB micro SD card, up to 128GB
     Power  Supply  DC 5V, 2AP
     Power Consumption  ≤3W
     Use Range  Indoor only
     Installation  Ceiling installation
